Modell
NVIDIA GeForce RTX 5080
Speicher
16GB GDDR7, 256bit, 30Gbps, 1875MHz, 960GB/s
Übertaktung
+158MHz Boost
Kühlung
3x Axial-Lüfter (100mm)
TDP/TGP
360W (NVIDIA), max. 360W (PNY)
AI-Rechenleistung
>1801 TOPS
GPU-Rechenleistung
59.67 TFLOPS (FP16), 59.67 TFLOPS (FP32), 0.93 TFLOPS (FP64)
Stromanschlüsse
1x 12V-2x6 (via Adapter: 3x 8-Pin PCIe)

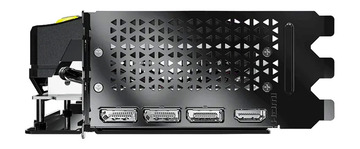

Anschlüsse
1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
Besonderheiten
AI-Beschleunigung, LED-Beleuchtung (RGB), Backplate
Gesamthöhe
Triple Slot (3.0 Slots)
Abmessungen
328.68x137.67x59.69mm (LxBxH)
Bauform
PCIe-Karte (full height)
Chip-Architektur
Blackwell (ab 2025/Q1)
Chip-Bezeichnung
GB203-400-A1
Chip-Konfiguration
84SM (10752SP / 336TMU / 128ROP), 84 RT Cores, 336 Tensor Cores, 64MiB L2-Cache
Chip-Größe
378mm², monolithisch, 45.6 Mrd. Transistoren
Chip-Funktionen
Raytracing (4th Gen NVIDIA RTX, 171 TFLOPS), NVIDIA Tensor (5th Gen, 1801 TOPS), HDCP 2.3
API-Unterstützung
DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8
Transcoding-Engine
2x NVENC (9th Gen, max. Sessions: 8), 2x NVDEC (6th Gen), Info
Encoding
AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding
AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
Vorstellung (Serie)
06.01.2025, Marktstart: 30.01.2025, UVP: 999 USD/1.169 EUR (NVIDIA)
Grafik
NVIDIA GeForce RTX 5080 - 16GB GDDR7 - Desktop
